MCA™-22 Modular Chassis Assembly
$189.99
MCA™-22
Designed for Ruger® 10/22® and similar actions and barrels.

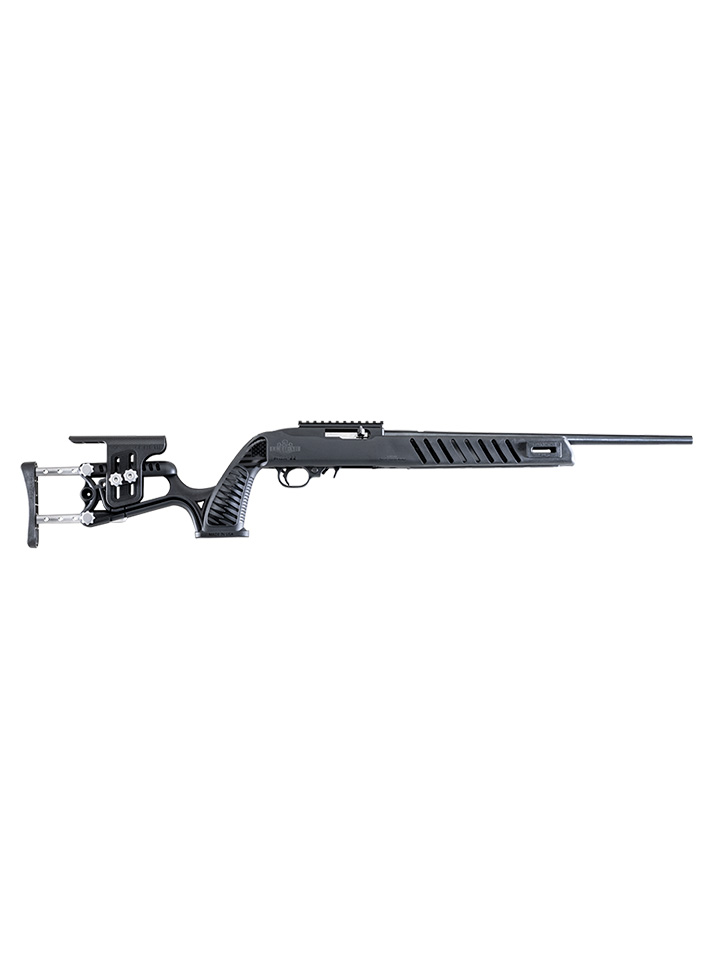

The MCA™-22 allows users the best possible fit for recreational, hunting, and competition shooting. Easily install your Ruger® 10/22® or similar receiver, trigger group and barrel into the MCA™-22. Accepts standard or bull barrels.
The MCA-22 is NOT compatible with bolt action .22s. MCA-22 is not compatible with anything but a Ruger 10/22 style action. does not work with the the takedown model. Does not fit receivers with a rear tang.
- Easy to install, light weight chassis and cost effective.
- Constructed with high-strength glass filled nylon, 6061 aluminum and steel.
- Designed for comfort and ergonomic control for wide range of body types.
- 100% ambidextrous.
- Ambidextrous goose-neck style pistol grip with palm swell.
- Click-adjustable cheek piece.
- Aggressive grip panel and front grip strap texturing.
- Does not fit Ruger takedown models

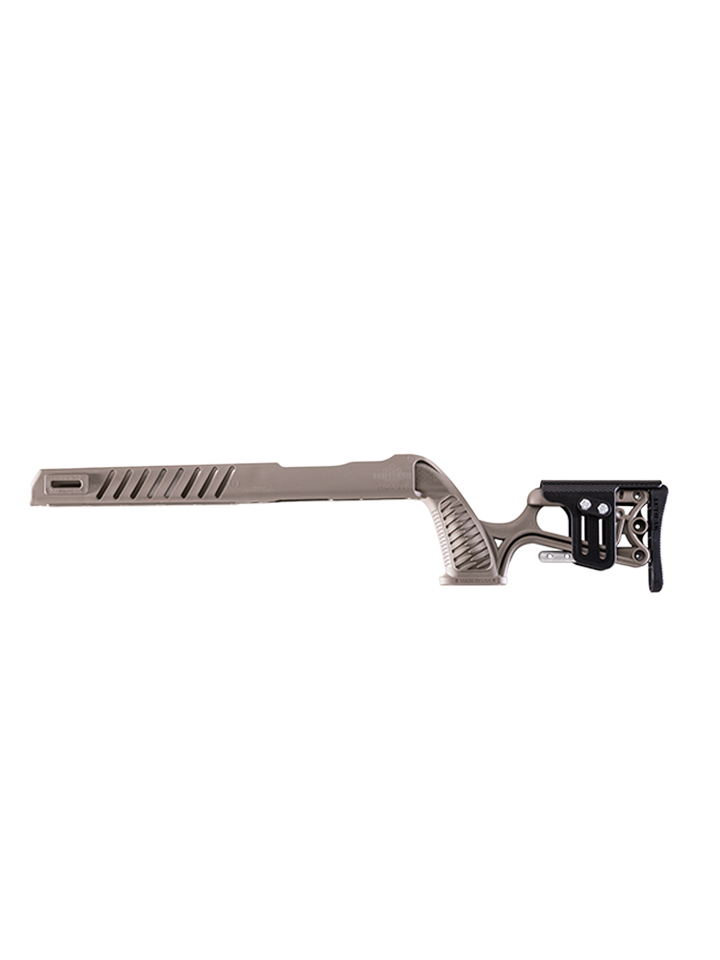

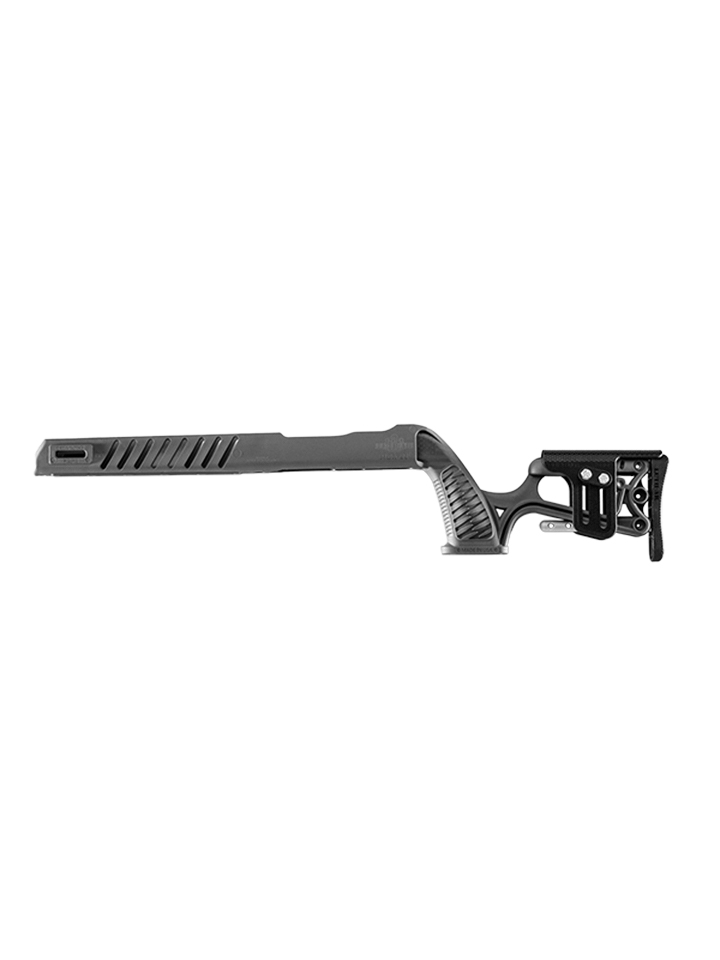

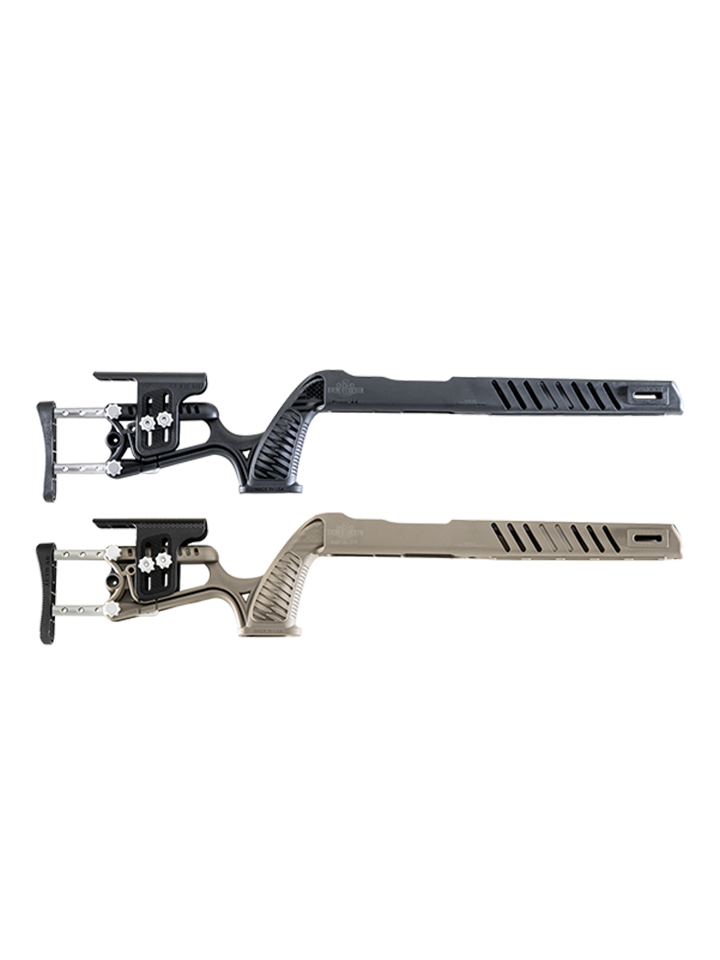

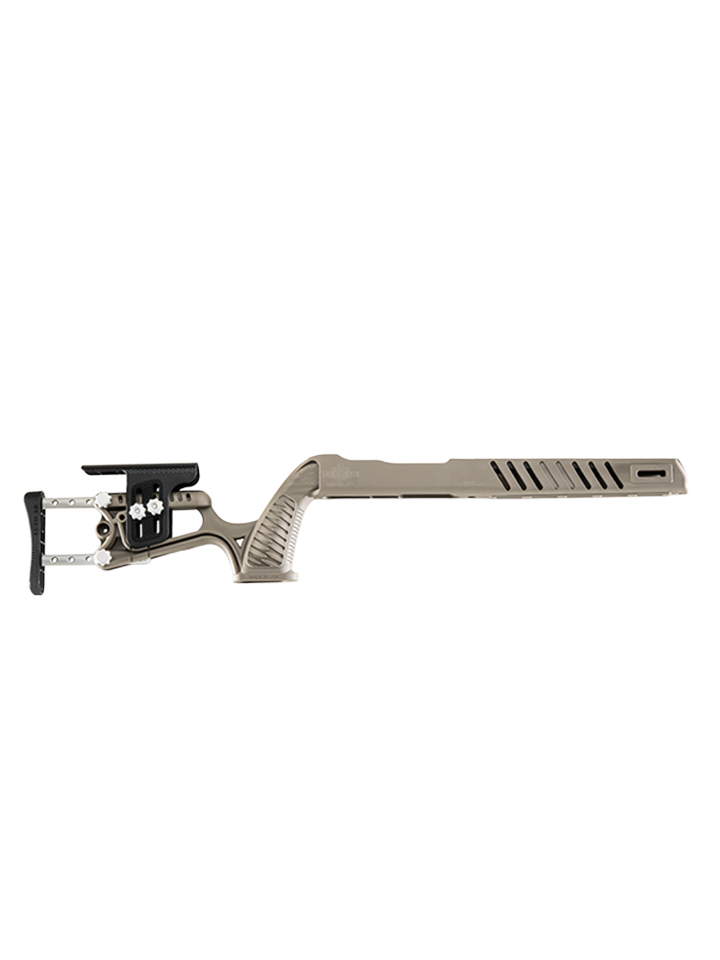

- Available in Black and Flat Dark Earth
Free shipping on orders over $175.00! (*Retail Orders Only)
- Made in America
- Secure Checkout
Description
MCA™-22
Designed for Ruger® 10/22® and similar actions and barrels.
The MCA™-22 allows users the best possible fit for recreational, hunting, and competition shooting. Easily install your Ruger® 10/22® or similar receiver, trigger group and barrel into the MCA™-22. Accepts standard or bull barrels.
The MCA-22 is compatible with the Ruger 10/22 style receiver as long as it is NOT the takedown model. The MCA-22 is NOT compatible with bolt action .22s. Does not fit receivers with a rear tang.
- Easy to install, light weight chassis and cost effective.
- Constructed with high-strength glass filled nylon, 6061 aluminum and steel.
- Designed for comfort and ergonomic control for wide range of body types.
- 100% ambidextrous.
- Ambidextrous goose-neck style pistol grip with palm swell.
- Click-adjustable cheek piece.
- Aggressive grip panel and front grip strap texturing.

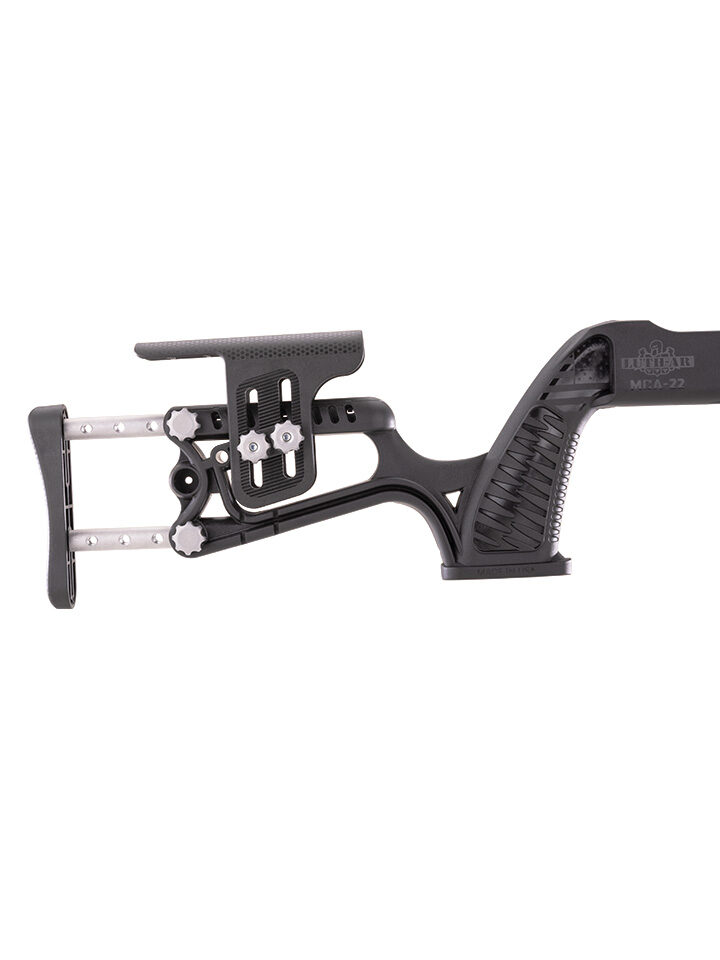

Butt Stock features:
- Ambidextrous goose-neck style pistol grip with palm swell.
- Click-adjustable cheek piece / front and back .750” / up and down 2” (+1”/-1” from bore center).
- Aggressive grip panel and front grip strap texturing.

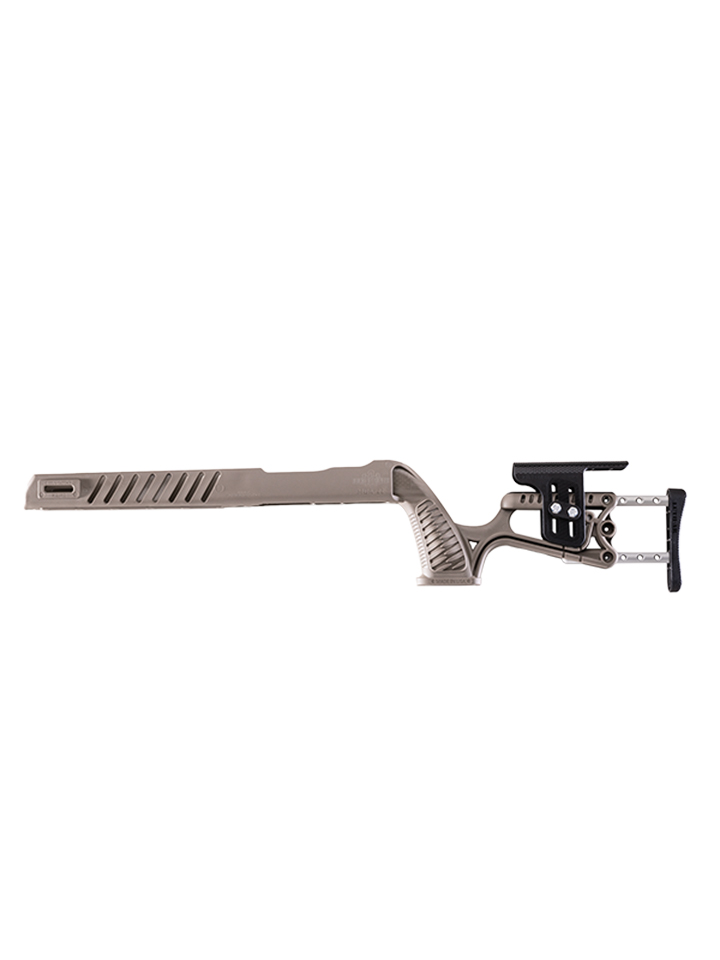

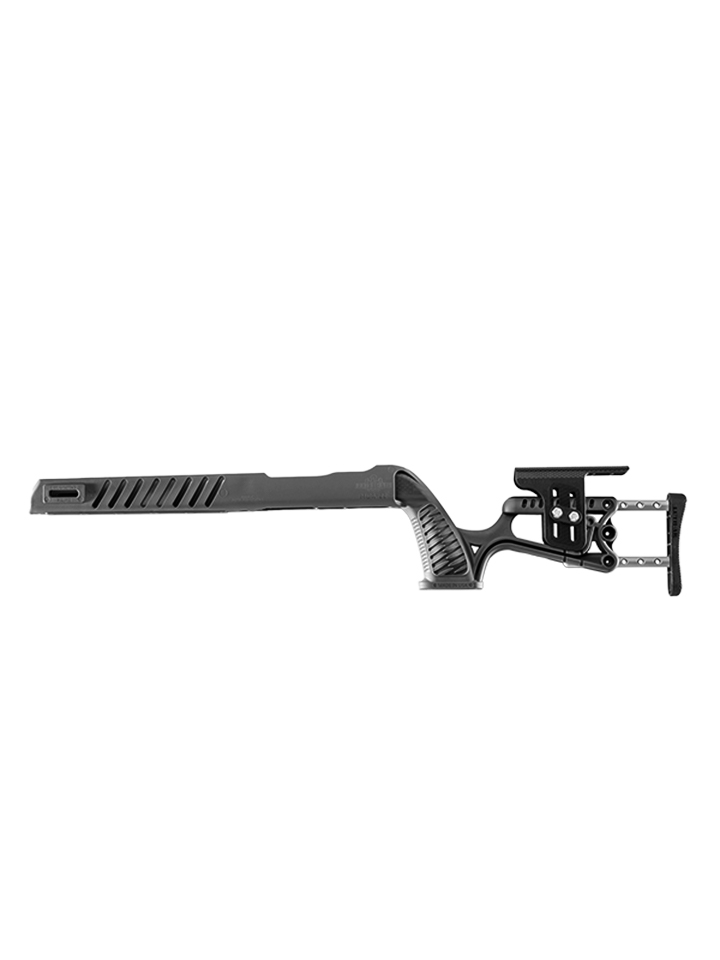

- Length of pull adjustable from 11.25” to 15.75” in .75” increments.
- 1” Vertical butt pad adjustment.
- Two locations to accept GrovTec Threaded QD Cup inserts.
Foregrip features:
- 5-slot M-LOK® compatible foregrip bottom with 1 M-LOK® slot on both sides of foregrip.
- Front bottom foregrip pre-drilled dome sling stud locator hole (Must Tap 10-32).
- Removable taper barrel foregrip insert to accommodate bull barrels.
Specifications:
- Weight: 2.09 lbs
- Overall Length: 26.5″
- Collapsed: 27″
- Full Extension: 30.75″
- Width: 1.790″
- Additional LOP
- Collapsed: 11.25″
- Extended: 15.75″
- Increments: .75″
- Cheek Rise
- Increments: .090″
- Adjustable: 2” (+1”/-1” from bore center)
- Available in Black and Flat Dark Earth
SKU – Black: MCA-22
SKU – FDE: MCA-22F
Additional information
| Application | Ruger® 10/22® Style Actions |
|---|---|
| Caliber | .22LR |
| Overall Length | 26.5" |
| Width | 1.790" |
| Cheek Rise | Adjustable: 2” (+1”/-1” from bore center) .90" Increments |
| Collapsed Length-of-Pull | 11.5" |
| Extended Length-of-Pull | 15.75" |
| Slot Style | M-LOK® |
| Weight lbs | 2.09 |
| Material | 33% Glass Filled Nylon |
| Available Colors | Black, Flat Dark Earth |
